Why Choose Planetary Gear for Global Sourcing?
Why Choose Planetary Gear for Global Sourcing?
Global sourcing decisions often begin with a practical question: can the planetary gear deliver stable performance across different markets? Its compact structure combines sun, planet, and ring gears inside one assembly. This arrangement spreads torque across several contact points. It can also provide high reduction ratios without demanding excessive installation space. That matters in robotics, packaging equipment, electric drives, and mobile machinery.
Dr. Robert L. Errichello, a respected gear-reliability specialist, stated, “Gear reliability begins with understanding the application.” This principle remains highly relevant when selecting a planetary gear supplier. A buyer must examine load cycles, lubrication, noise limits, temperature, and expected service life. Supplier audits add another layer of confidence. They should include material certificates, heat-treatment records, dimensional reports, and real test data. A polished catalog is not enough.
The sourcing advantage becomes clearer when engineering and procurement communicate early. Standardized planetary gear platforms can reduce tooling pressure and simplify replacement planning. Multiple manufacturing regions may also improve supply continuity. Yet global sourcing is not automatically safer or cheaper. Freight delays, inconsistent tolerances, and unclear quality ownership can erase the expected savings. That is the uncomfortable part.
Small details matter.
A reliable supplier should explain how tooth geometry, bearing support, and assembly control affect performance. Buyers should compare total cost, not only the quoted unit price. Field experience, transparent documentation, and responsive technical support create stronger decisions. Some projects may still need local production or a customized design. That possibility deserves honest consideration.
Define the Application: 3:1–10:1 Ratios and Required Output Torque
Why Choose Planetary Gear for Global Sourcing?
A planetary gearbox should begin with the application, not a catalog ratio.
Ratios from 3:1 to 10:1 suit many compact drives, but the required output torque decides the practical choice.
Torque changes everything.
Define continuous torque, peak torque, speed, duty cycle, and acceleration time before requesting quotations. A 5:1 gearbox receiving 100 Nm at 95% efficiency can deliver about 475 Nm before applying a service factor. Shock loads, frequent starts, and sudden stops may require considerably more capacity.
Planetary gearing distributes load across several planet gears, supporting high torque in a compact housing. This can help when installation space is limited or radial loads affect the output shaft. However, ratio alone does not confirm suitability.
Check backlash, torsional stiffness, efficiency, noise, operating temperature, lubrication, and expected service life.
Do not guess.
A motor may reach the target speed while failing during acceleration.
Global sourcing also requires clear technical evidence. Request dimensional drawings, torque curves, material details, tolerance data, inspection records, and application test results. Confirm whether quoted torque means continuous output or short-term peak capacity.
That gap matters.
In practice, engineers sometimes calculate with ideal efficiency and underestimate real losses. I have found that duty assumptions are often incomplete, especially when loads vary during a shift. Rechecking the load profile can prevent an expensive mismatch, even when the initial ratio appears correct.
Explain the Architecture: 3–5 Planet Gears Share the Applied Load
Why Choose Planetary Gear for Global Sourcing?

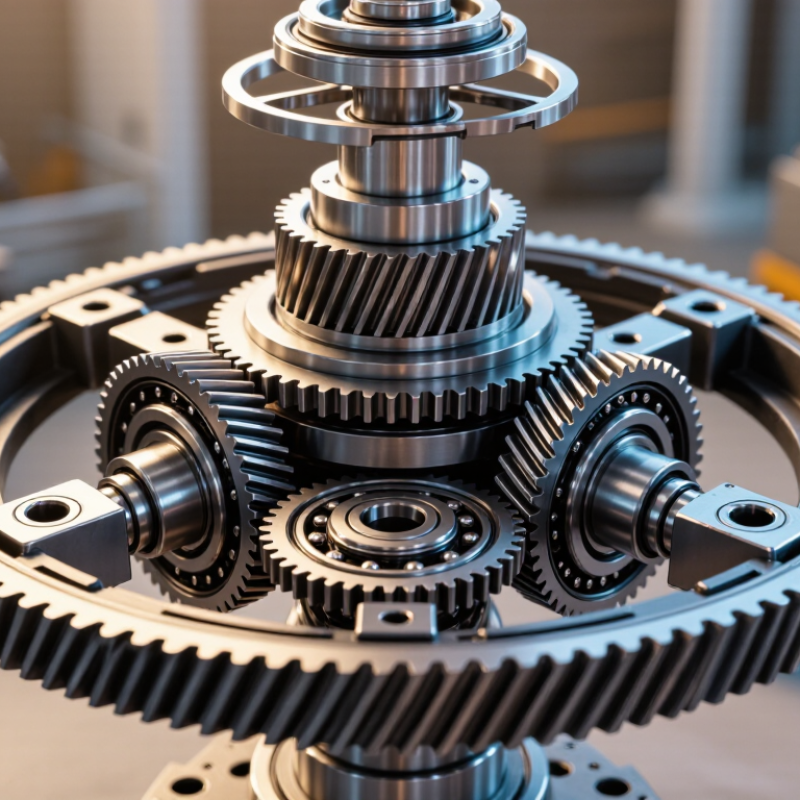

A planetary gearbox uses a central sun gear, surrounding planet gears, and an outer ring gear. In a common design, three to five planet gears share the applied load. This arrangement spreads torque across several contact points. Each gear carries less force than a single-gear train would. The result can be a compact gearbox with strong torque density and controlled dimensions. During sourcing, engineers should inspect tooth geometry, bearing support, and carrier stiffness. Small alignment errors can still create noise, heat, or uneven wear. The design is efficient, but it is not automatically flawless.
Load sharing depends on manufacturing accuracy. Planet pins must stay evenly positioned. Clearance must also remain within the specified range. A practical evaluation includes hardness testing, backlash measurement, noise checks, and endurance trials. Suppliers should provide material records and traceable inspection data. These records support reliable comparisons across production sites. In my experience, sample performance can look excellent before long-cycle testing. That is where weaknesses appear. Sometimes, the carrier needs more refinement.
Tips: Ask how the supplier verifies load distribution. Request test data under actual torque and speed conditions. Check whether inspection tools are calibrated. Review lubrication guidance before approval. Avoid judging quality from size alone. A small planetary gearbox may require stricter assembly control than expected.
Compare Performance: 90–98% Efficiency and High Torque Density
Planetary gears are often chosen for global sourcing because they combine compact size with serious torque capacity. Their sun gear, planet gears, and ring gear share the load. This spreads force across several contact points. The result is high torque density, especially where installation space is limited. In well-designed systems, efficiency commonly reaches 90–98%. That figure depends on speed, lubrication, tooth accuracy, and operating load. It is not guaranteed.
During supplier evaluations, engineers should examine measured performance rather than rely on catalog claims. A gearbox may reach 98% efficiency under one test condition, then lose several points at low speed or heavy load. Small losses also become heat. That heat can shorten lubricant life and affect long-term reliability. I have seen specifications look impressive until testing revealed excessive backlash or noise. A better review includes torque testing, temperature records, material certificates, and documented quality controls.
Tips: Ask for efficiency curves across the expected operating range. Check whether torque ratings describe continuous or peak duty. Request samples before placing large orders. Inspect tooth surfaces, bearing fit, seals, and lubrication traces. Leave room for honest uncertainty; production tolerances can change results. A slightly larger gearbox may deliver better durability than the smallest available option. Compare total operating value, not efficiency alone.
Select Global Suppliers: MOQ, Lead Time, TCO, and Quality Risk
Why Choose Planetary Gear for Global Sourcing?
Selecting global planetary gear suppliers requires more than comparing unit prices. MOQ, lead time, total cost of ownership, and quality risk often decide project success. In sourcing work, a low quotation looked attractive until inspections, freight changes, and rejected batches consumed the savings. Planetary gear sets need accurate tooth geometry, controlled heat treatment, and stable assembly processes. Small deviations can create noise, backlash, or early wear.
MOQ deserves practical negotiation. A supplier offering 10,000 sets may not suit a pilot program needing 800. Ask whether staged delivery, mixed production, or paid sampling is possible. Keep samples from the same process planned for mass production. Otherwise, approval data can mislead the engineering team. Lead time also needs a risk buffer. Tooling, material shortages, port delays, and rework can shift promised dates by weeks. A written production schedule is more useful than a confident email.
TCO should include tooling, packaging, customs handling, incoming inspection, warranty exposure, and replacement freight. Compare cost per reliable operating hour, not cost per gearbox. Quality risk becomes clearer through capability records, batch traceability, dimensional reports, and endurance testing. Ask for corrective-action evidence, not polished certificates alone. Audits can miss night-shift problems. Repeat checks matter. The best supplier is not always the cheapest or fastest. It is the one that communicates limits early and proves consistency over time. Even then, review assumptions after the first shipment.
Why Choose Planetary Gear for Global Sourcing?
Select global suppliers by MOQ, lead time, total cost of ownership, and quality risk.
The chart uses a normalized procurement benchmark where 100 represents the baseline for a conventional industrial gear sourcing program. Lower values indicate a more favorable sourcing position. Planetary gear programs can support lower material use, compact packaging, and reduced lifecycle cost, while MOQ and lead time still depend on order volume, customization, tooling, and supplier qualification.
